FORCED AIR-COOLED RUGGED SERVER

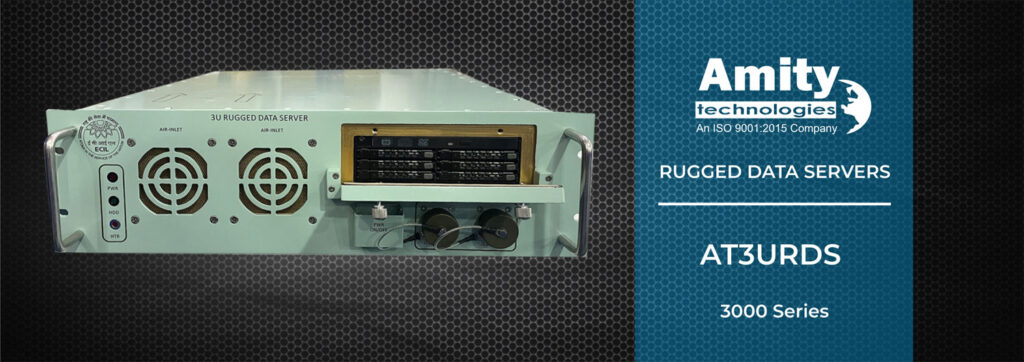

3U Rugged Data Server
Product Highlights :
The AT3URDS Rack Mount Server is a compact, versatile and rugged platform offering high reliability for the most demanding applications. Intel based architecture provides the highest performance available. Active and Passive CPU board options enable maximum flexibility and configuration.
The AT3URDS 3U Server is an extreme duty system designed for military operations and multitude of other rugged industrial applications with a compact design that saves space and weight, the AT3URDS 3U Server offers great value and performance without associated high cost.
Product Particulars

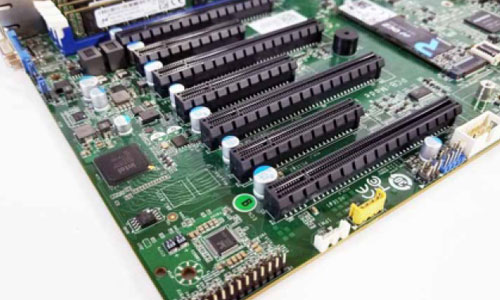

Server Board

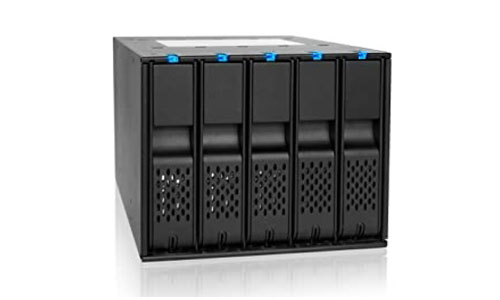

2.5” SSD Drive Bay

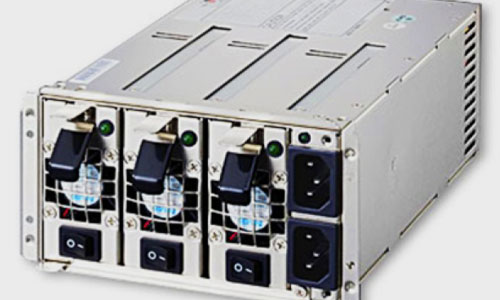

Power Supply

EMI / EMC MIL-STD 461E / F

ENVIRONMENT JSS55555 / MIL-STD 810G

LIGHT-WEIGHT

COMPACT SIZE

D38999 SERIES I/Os
TECHNICAL SPECIFICATIONS
CHASSIS
Material : Aluminum
Indicators : Power, Heater & Drive LEDs
Controls : Power On / Off
Cooling : Forced Air
Dimension : 19″ x 3U x 550mm
Weight : 25 Kgs Max
SYSTEM BOARD
CPU : Intel Xeon Silver 4410Y
Chipset : Intel latest C741
Primary Memory : 128 GB DDR5
Graphics : Nvidia 4GB Add-On-Card
Software Raid : 1, 5, 10 Levels
OS : Redhat Linux Server
REAR I/O
Rear Inputs :
- (2) x USB 2.0 MIL
- (2) x USB 3.0 MIL
- (2) x GbE Ethernet Pin Type
- (1) x RJ45 Ethernet Port (MIL)
- (1) x 10G SFP+ Rugged Connector
- (1) x RS232 Serial MIL
- (1) x VGA; (1) x HDMI; (1) x DP (MIL)
DRIVE BAYS
Internal : (4) x 2 TB SSD
Empty Drives : 2 x SSD Drives
Optical Drive : 1 x DVD RW
POWER SUPPLY - Redundant
Power Supply : 230V AC 800Watts
Power Usage : 400 Watts Typical
ENVIRONMENT
Temperature : -20C to +55C
Humidity : 5% to 95%, Non-Condensing
Altitude : Upto 10,000 feet
Vibration : As per JSS55555
Shock : As per JSS55555
EMI/EMC - MIL STD-461F
Radiated Emission : RE101, 102
Radiated Susceptibility : RS 101, 103
Conducted Emission : CE101, 102
Conducted Susceptibility : CS14, 115, 116
